The AP Series thermistor offers ultra-high accuracy, exceeding even our high-precision AT thermistors. With tight R25 and B25/85 tolerance levels (±0.5%), it ensures stable and reliable performance across various applications.
These thermistors maintain 0.5% resistance tolerance across a wide temperature range of –60°C to +70°C, making them ideal for critical environments where precision is key.
SEMITEC’s AP thermistors are fully compliant with RoHS Directive 2011/65/EU.
Applications include mobile devices, battery packs, fan motors, automotive systems, office automation, home electronics, security systems, thermometers, measuring instruments, and more..

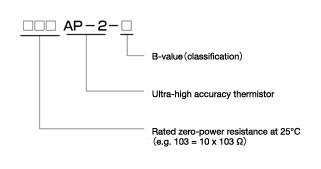

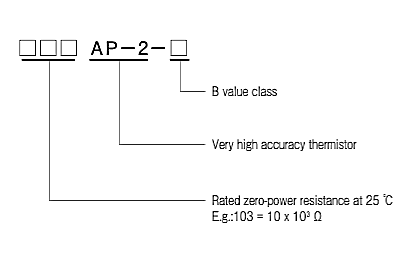

| Part No. | R251 | R25Tolerance | B-value2 | Dissipation factor ｍW/℃ |
Thermal time constant s3 | Rated power mW at 25℃ |
Operating Temperature range ℃ |
|---|---|---|---|---|---|---|---|
| 202AP-2 | 2.00kΩ | ±0.5% | 3976K±0.5% | approx. 1.2 | approx. 15 | 6 | −60〜150 |
| 232AP-2 | 2.252kΩ | 3976K±0.5% | |||||
| 502AP-2 | 5.00kΩ | 3976K±0.5% | |||||
| 103AP-2 | 10.00kΩ | 3435K±0.5% | |||||
| 103AP-2-A | 3976K±0.5% | ||||||
| 203AP-2 | 20.0kΩ | 3976K±0.5% | |||||
| 503AP-2 | 50.0kΩ | 4220K±0.5% | |||||
| 104AP-2 | 100kΩ | 4261K±0.5% | |||||
| 204AP-2 | 200kΩ | 4470K±0.5% |
1. Rated zero-power resistance at 25℃
2. B-value determined by rated zero-power resistance at 25℃ and 85℃
3. Time required to reach 63.2% of temperature difference. Measured in still air.
