JT Thermistor
The JT series thermistor has a thickness of less than 500 μm and excellent accuracy. Additionally, the JT thermistor is safe to use in environments where it may come into contact with electrodes due to its excellent electrical insulation.
- High accuracy approx
- Quick response time approx : 5 sec
- Excellent repeatability ≤ ±1%
- Surface temperature detection
Application
Air Conditioner, Used in EV Battery pack,EV Motor Assembly,EV Chargers,Medical Equipments

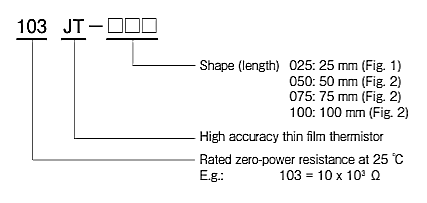

Product Coding

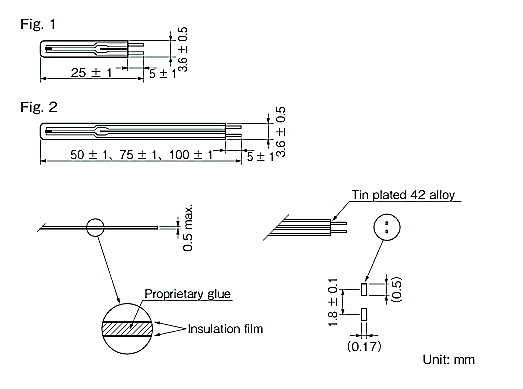

Dimension
Rating
| Product Number. | R25*1 | R25Tolerance | B-value*2 | Dissipation factor ｍW/℃ | Thermal time constant s*3 | Rated power mW at 25℃ | Operating Temperature range ℃ |
|---|---|---|---|---|---|---|---|
| 103JT | 10.0kΩ | ± 1% |
3435K±1% | approx. 0.7 | approx. 5 | 3.5 | −50 〜 +125 |
| 104JT | 100kΩ | 4390K±1% |
*1. Rated zero-power resistance at 25 ℃
*2. B value calculated from rated zero-power resistance at 25 ℃ and 85 ℃
*3. Thermal time-constant :Time required to reach 63.2% of temperature difference. Measured with sensor suspended in mid-air.
