Power Thermistor
Series D2

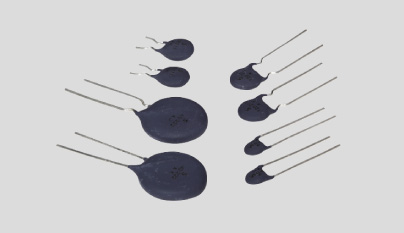

Power thermistors utilize the characteristics of NTC thermistors where a device heats up when current flows through it, and this self heating causes a dramatic decrease in resistance. SEMITEC’s power thermistors are less expensive compared to conventional power thermistors, due to lower manufacturing costs achieved. Standards UL1434 File No. E92669 (1D2-22 excluded) Standards SEMITEC’S power thermistor series is fully compliant with RoHS DIRECTIVE2011/65/EU.
- High Power Dissipation
- Stable Resistance Characteristics
- Fast Thermal Response
- Low Thermal Time Constant
Application
Switching power supplies, Adapters, LCD TVs, Plasma TVs, Air conditioners, DVD players, Audio equipment, LCD projectors, Copiers, PCs, Printers, Office automation equipment, Gaming machine power supplies.

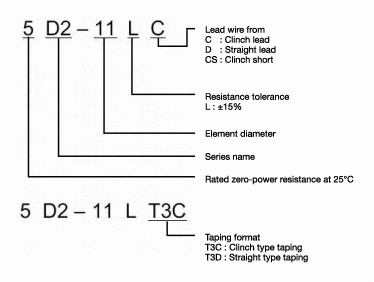

Product Codeing

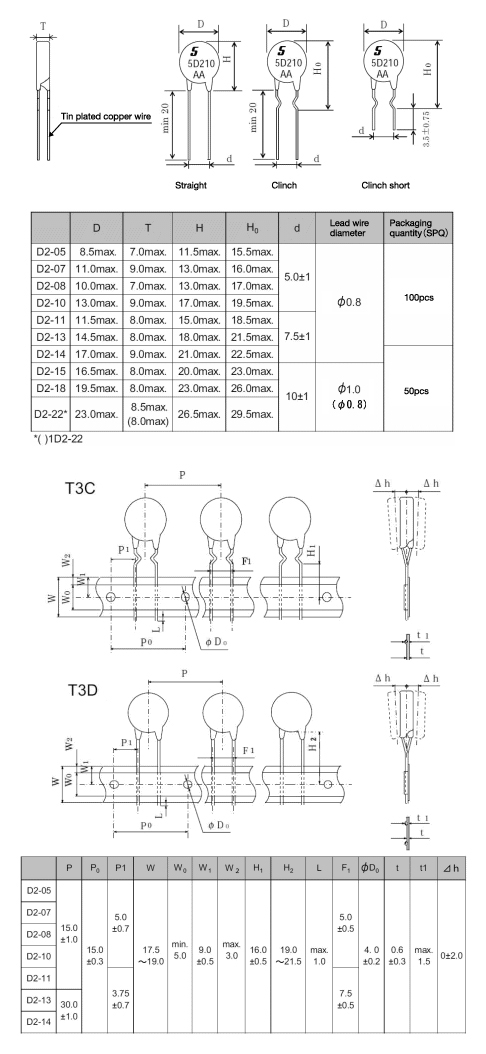

Dimension
Rating
| Parts No. | Rated Zero-Power Resistance R25(Ω) (±15％) |
※Rated B-value B25/85(K)(±15％) |
Category Temperature range(℃) |
|---|---|---|---|
| □□D2-05 | 5〜20 | 2650〜2800 | -50〜150 |
| □□D2-07 | 5〜22 | 2800〜2900 | -40〜160 |
| □□D2-08 | 5〜20 | 2700〜2900 | -50〜170 |
| □□D2-10 | 2〜16 | 2800〜3000 | -40〜160 |
| □□D2-11 | 2〜20 | 2650〜3000 | -50〜170 |
| □□D2-13 | 1〜16 | 2650〜3050 | -50〜200 |
| □□D2-14 | 2〜16 | 2800〜3000 | -40〜160 |
| □□D2-15 | 1〜16 | 2650〜3100 | -50〜200 |
| □□D2-18 | 4〜47 | 2900〜3450 | -50〜200 |
| □□D2-22 | 1〜6 | 2800〜3000 | -50〜200 |
1. Rated zero-power resistance at each temperature
