CT Thermistor

CT Thermistor sensor

CT Thermistor is a high-temperature, glass-encapsulated axial thermistor offering excellent reliability, moisture resistance, and stable performance in extreme environments

  • Excellent long-term reliability and stability
  • Suitable for harsh and high-temperature environments
  • Compact axial design for easy mounting and installation
  • Stable resistance characteristics over temperature range

Application

Home electronics, HVAC equipment, Water heaters, Kitchen appliances, Solar systems, Vending machines, Refrigerator, Batteries

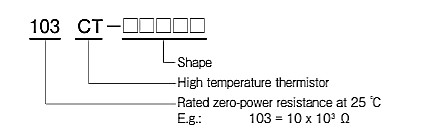

Product number Explination

CT Thermistor Product number Explination

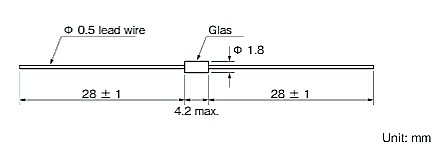

Dimension

CT Thermistor Dimension

Rating

Product Number. Rated zero-power resistance1 B-value*2 Operating Temperature range
Lead wire
Temperature (℃) Resistance (kΩ) Tolerance (%)
252CT-4 25℃ 2.5 kΩ ±5％ 3670K±2％ −50 〜 250 Nickel plating
512CT-4 5.1 kΩ 3200K±2％ −50〜＋200
562CT-4 5.6 kΩ 3200K±2％
912CT-4 9.1 kΩ 3270K±2％ -50 ~ 250
103CT-4 10 kΩ 3270K±2％
113CT-4
 11 kΩ 3270K±2％
203CT-4 20 kΩ 3410K±2％
473CT-4 47 kΩ 3610K±2％
513CT-4 51 kΩ 3610K±2％
563CT-4 56 kΩ 3610K±2％
104CT-4 100 kΩ 3450K±2％
204CT-4 200 kΩ 3500K±2％
103CT-01006 25℃ 10 kΩ ±5％ 3900K±2％ -30 ~ 150 Tin plating
103CT-21048 25℃ 10 kΩ ±3％ 4100K±2％ -40 ~ 150
503CT-91027 50℃ 19.727 kΩ ±2.5％ 3992K±2％
104CT-90113 25℃ 100 kΩ ±5％ 4070K±2％

* 1. Rated zero-power resistance at each temperature 2

* 2. B value calculated from rated zeropower resistance at each temperature

* 3. Time required to reach 63.2% of temperature difference. Measured with sensor suspended in mid-air.
