E Series (Axial Lead Type)
CRDs offers a compact and reliable solution for keeping the current constant. The CRD E series products come in the DO-35 style package with DHD (double heat sink diode) construction. – Hermetically sealed, high reliability package – Suitable for mass production due to lower cost materials – Compact device offered in the DO-35 (300 mW) package 18mA CRD (E-183) With the addition of an 18mA CRD to our product lineup (up from 15mA), it is now possible to supply constant current to 20mA high brightness LEDs for luminance stabilization. SEMITEC’S CRD E series is fully compliant with RoHS DIRECTIVE2011/65/EU.
- Constant Current Output
- Wide Operating Temperature
- Low Temperature Coefficient
- High Long-Term Stability
Application
LED street & building lighting – energy-efficient urban infrastructure
Sensor current sources – industrial automation & IoT devices
Battery charge/discharge circuits – EVs & renewable energy storage
Stabilized power supply circuits – telecom & IT infrastructure
Piezoelectric actuator current source – smart devices & robotics
Capacitor aging & semiconductor test equipment – electronics manufacturing & quality assurance
Earth leakage protection – residential & commercial electrical safety

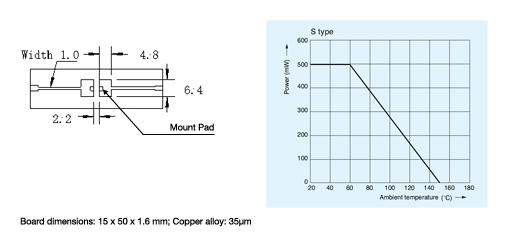

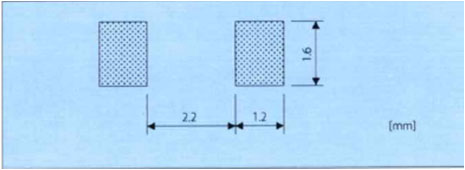

Mount Pad dimensions
Rating
(Ambient temperature: 25 ±3℃, 45~75% relative humidity)
| Item | Condition | Rating |
|---|---|---|

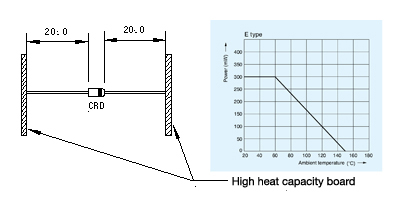

| Rated power | See drawing below | 300mW |
| Rated voltage (pulse wave) | - | 100V(E-101〜E-562) |
| 50V(E-822〜-E183) | ||
| Allowable Reverse current | - | 50mA |
| Junction temperature | - | 150℃ |
| Operating temperature range | - | -30℃〜150℃ |
Mounting location
Specification
| Product number | Pinch-off current 10(V)1 | Limiting current ratio2 | Limiting current ratio | Temperature coefficient (25℃ to 50℃) |
Max rated voltage | Marking | ||
|---|---|---|---|---|---|---|---|---|
| typical | min – max | Vk [V] |
Ik [mA] |
I100Ｖ/Ip I30Ｖ/Ip |
[％/℃] | Ｖmax. [V] |
||
| E-101 | 0.10 | 0.05～0.21 | 0.5 | min.0.8 lp | max.1.1 | +2.10～+0.10 | 100 | 01 |
| E-301 | 0.30 | 0.20～0.42 | 0.8 | min.0.8 lp | max.1.1 | +0.40～-0.20 | 100 | 03 |
| E-501 | 0.50 | 0.40～0.63 | 1.1 | min.0.8 lp | max.1.1 | +0.15～-0.25 | 100 | 05 |
| E-701 | 0.70 | 0.60～0.92 | 1.4 | min.0.8 lp | max.1.1 | 0.00～-0.32 | 100 | 07 |
| E-102 | 1.00 | 0.88～1.32 | 1.7 | min.0.8 lp | max.1.1 | -0.10～-0.37 | 100 | 10 |
| E-152 | 1.50 | 1.28～1.72 | 2.0 | min.0.8 lp | max.1.1 | -0.13～-0.40 | 100 | 15 |
| E-202 | 2.00 | 1.68～2.32 | 2.3 | min.0.8 lp | max.1.1 | -0.15～-0.42 | 100 | 20 |
| E-272 | 2.70 | 2.28～3.10 | 2.7 | min.0.8 lp | max.1.1 | -0.18～-0.45 | 100 | 27 |
| E-352 | 3.50 | 3.00～4.10 | 3.2 | min.0.8 lp | max.1.1 | -0.20～-0.47 | 100 | 35 |
| E-452 | 4.50 | 3.90～5.10 | 3.7 | min.0.8 lp | max.1.1 | -0.22～-0.50 | 100 | 45 |
| E-562 | 5.60 | 5.00～6.50 | 4.5 | min.0.8 lp | max.1.1 | -0.25～-0.53 | 100 | 56 |
| E-822 | 8.20 | 6.56～9.84 | 3.1 | min.0.8 lp | ※3 max.1.0 | -0.25～-0.45 | 30 | 82 |
| E-103 | 10.00 | 8.00～12.0 | 3.5 | min.0.8 lp | ※3 max.1.0 | -0.25～-0.45 | 30 | 10 |
| E-123 | 12.00 | 9.60～14.4 | 3.8 | min.0.8 lp | ※3 max.1.0 | -0.25～-0.45 | 30 | 12 |
| E-153 | 15.00 | 12.0～18.0 | 4.3 | min.0.8 lp | ※3 max.1.0 | -0.25～-0.45 | 25 | 15 |
| E-183 | 18.00 | 16.0～20.0 | 4.6 | min.0.8 lp | ※3 max.1.0 | -0.25～-0.45 | 25 | 18 |
※1,※2：Temperature coefficient is measured at 25℃
※3：I30V/IP
